Bilirubin Testing Kit

Complete Supplies and Easy to Use
Request Pricing

or

Download a Brochure

Total and Direct Bilirubin Test for a Complete Solution

The Total and Direct Bilirubin Test Kit is used in conjunction with the Advanced Model BR2 Bilirubin STAT analyzer. The kit comes complete with all the supplies necessary to run 100 bilirubin measurements.

Highlighted features
  • Small Sample Size Requirement
  • Test Results Obtained in as Little as 2 Minutes
  • Easy Operation

EASY TO USE

Directions are provided with the kit, test kit provides everything required to run samples immediately

LOW COST PER TEST

Provides economic benefits and low cost of ownership to any laboratory

FAST AND ACCURATE TEST RESULTS

Provides instantaneous results for total bilirubin, direct bilirubin results achieved in 2 minutes

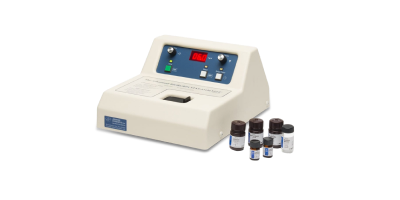

Advanced Model BR2 Bilirubin Stat-Analyzer Specifications*
Sample Size 30 µl
Sample Type Serum or Plasma
Sample Capacity Single sample, disposable cuvettes
Test Time Total: instanteneous Direct: 2 minutes
Units mg/dl Bilirubin (also available in µmol/L) S.I. units for export only; 1mg/dl bilirubin = 17.1 µmol/L
Range O to 30 mg/dl
Linearity Within ±0.2 mg/dl from straight-line from 0 to 30 mg/dl
Resolution ±0.1 mg/dl
Repeatability Within ±0.2 mg/dl over entire range
Drift Zero: < 0.2 mg/dl after 30-minute warm up Calibration: < 0.2 mg/dl 24 hr after warm up
Hemolysis No interference from HbO2 levels up to 600 mg/dl
Turbidity Neglisible interference from turbidity associated with triglyceride (TGL) levels up to 500 mg/dl
Operating Conditions Temperature 15 °C to 32 °C (59 °F to 90 °F); 5% to 80% relative humidity (noncondensing)
Storage Temperature -40 °C to +70 °C (-40 °F to 160 °F)
Electrical Voltage 100 to 120 VAC(60Hz) or 200 to 240 VAC(50Hz)
Power Consumption 15W
Dimensions 7″H x 11″W x 13″D (18cm X 28cm X 33cm)
Net Weight 9lb (4kg)
Shipping Weight 12lb (5.5kg)
Warranty One-year limited warranty on workmanship and all parts except glass, plastic, and parts warranted by their makers

Supplies & Accessories

B2A101Total Bilirubin Test Kit, 100 tests
B2A102Total and Direct Bilirubin Kit, 100 tests
B2A800Cuvettes Only
BR2 Bilirubin Stat Analyzer Learn more
